Victor 9000 -An Early Personal Computer

The Victor 9000 can run CP/M or DOS. Standard was an internal speaker, 12" green text CRT, two serial ports, and a parallel port. Many of the functions in this computer are software-defined, including audio CODECs. Some were shipped with two floppy drives. These speciments have a full-height 10MB HDD and one 5.25" 1.2MB floppy disk. The disk is the same media as a 360K "IBM" diskette. The extra capacity is made available through a variable-speed spindle which, by slowing down a bit for each track allowed the equivalent of an increasing number of 'sectors' as the heads progressed toward the outer diameter of the disk.

victor9000_boot_floppy.MOV
Booting from floppy diskette
victor9000_boot_HDD.MOV

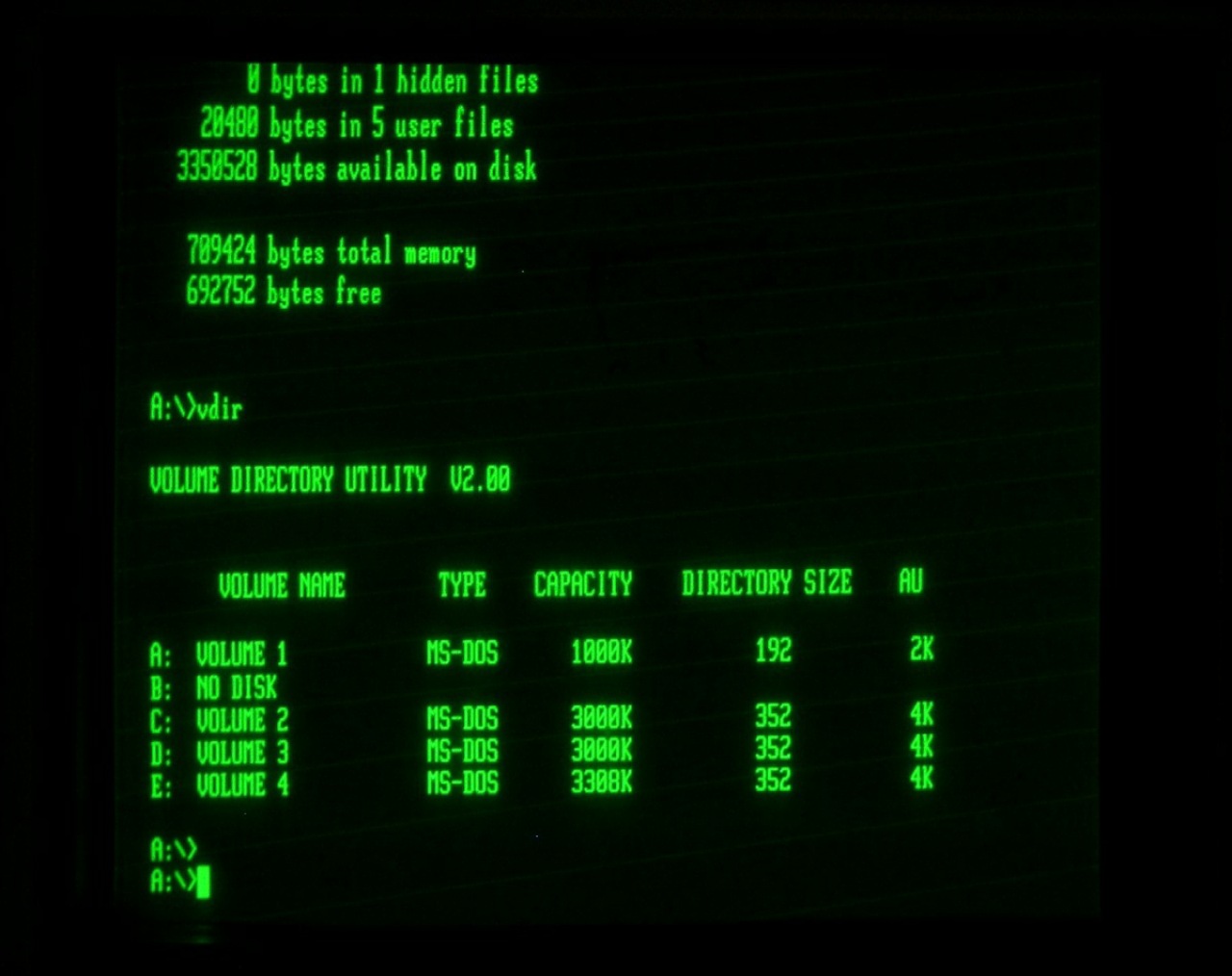

booting from the hard disk. In this case, the disk is partitioned into four logical drives.
wallpaper 1280x1024

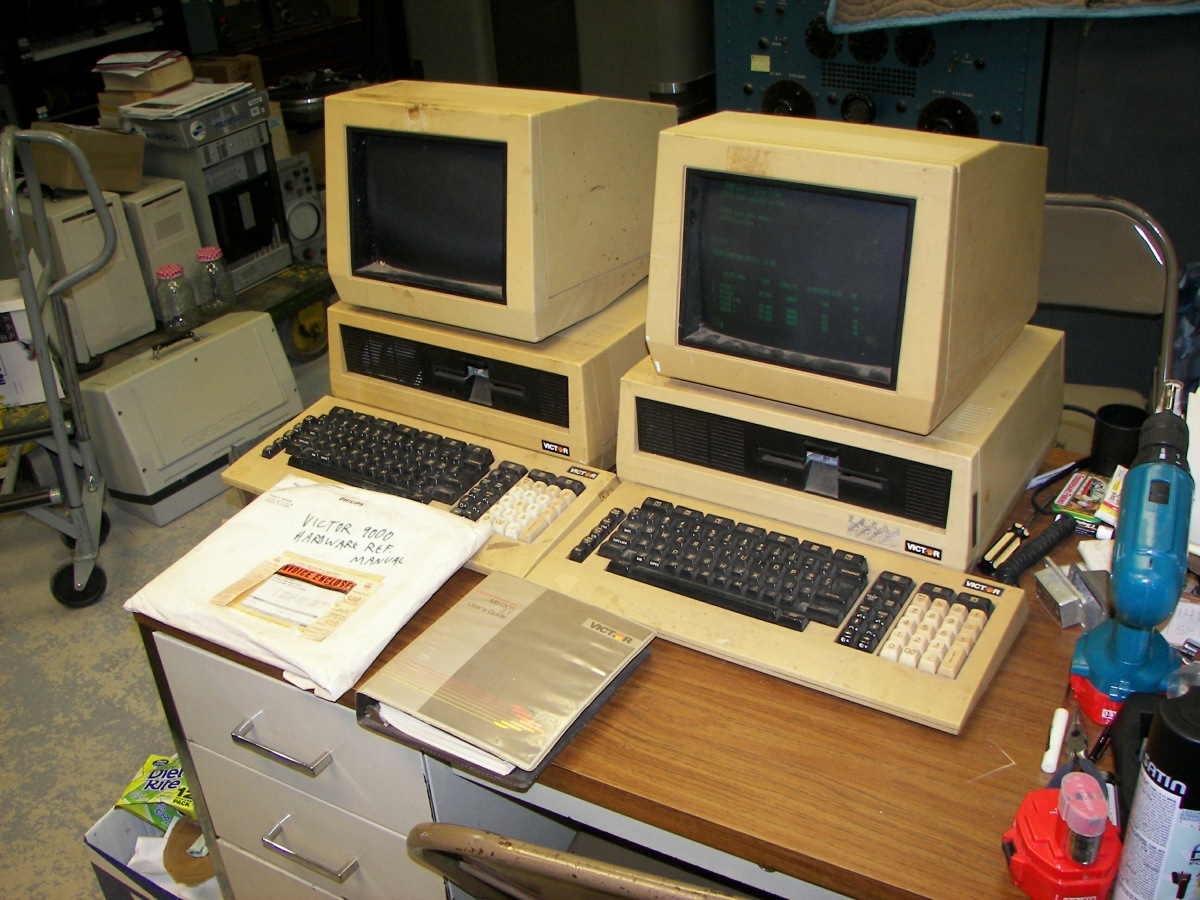

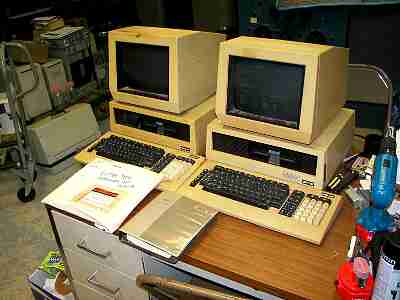

victor9000s.jpg victor_crt1.jpg

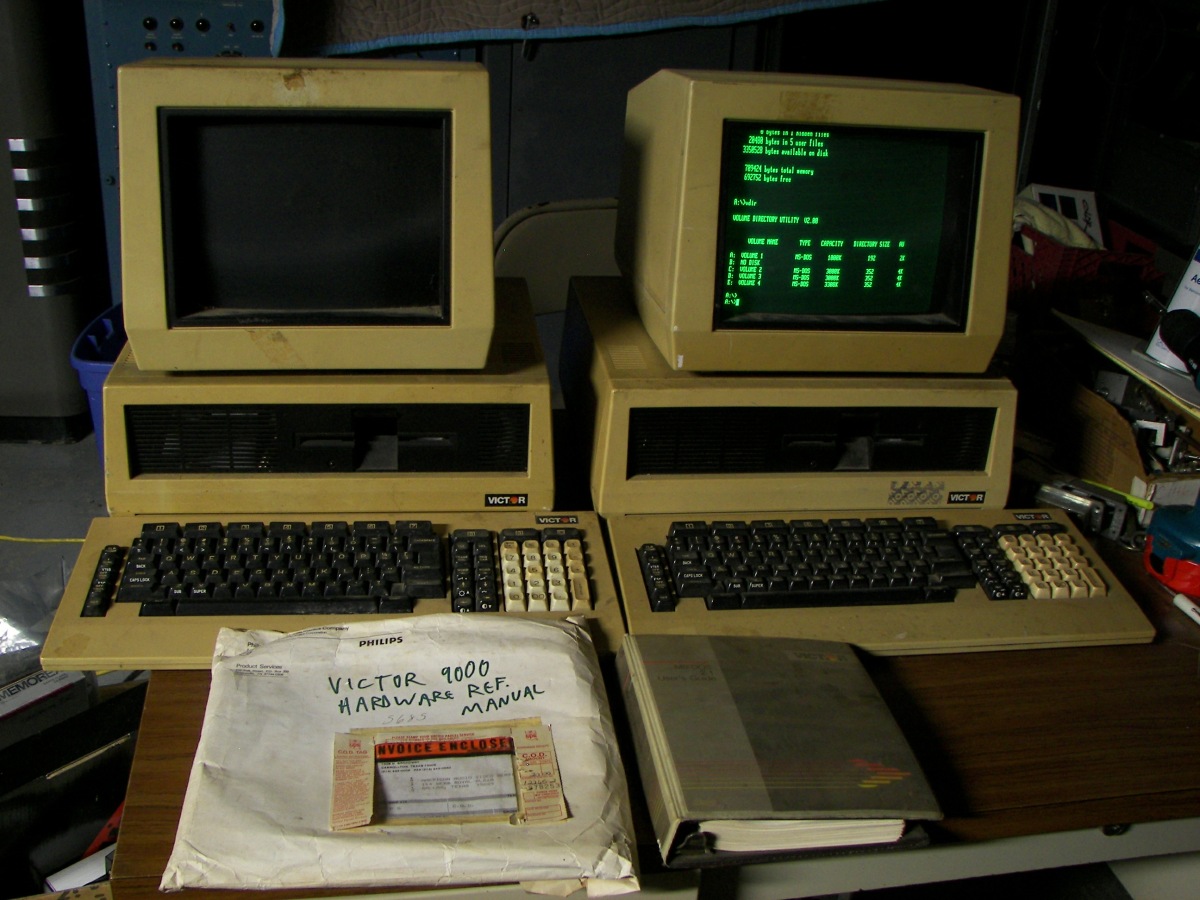

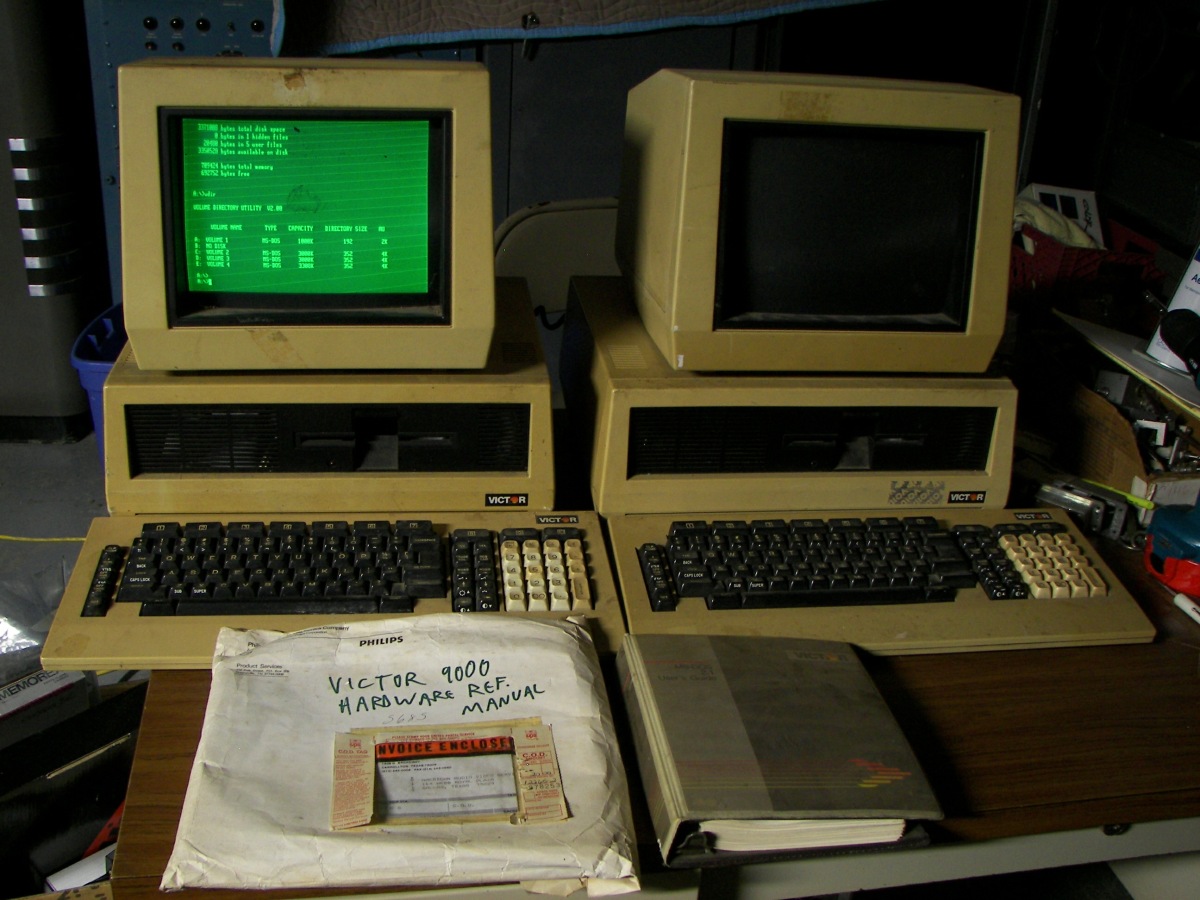

showing how the CRT looks
this one needs a touch-up. The controls are inside.
