Sonar FS-23 CB Radio


Thanks to Byron Jacobsen for scan of the original Sonar Service Manual

Tuning: 23 Channels
Modulation: AM
Device compliment: 13 tubes, 2 Transistors, 7 diodes
Power requirements: 120VAC or 12VDC
Power consumption:
90 watts, 0.78 amp@117VAC RX
87 watts, 0.76A @117VAC TX
6.1A@12VDC

Sonar FS-23 CB Radio

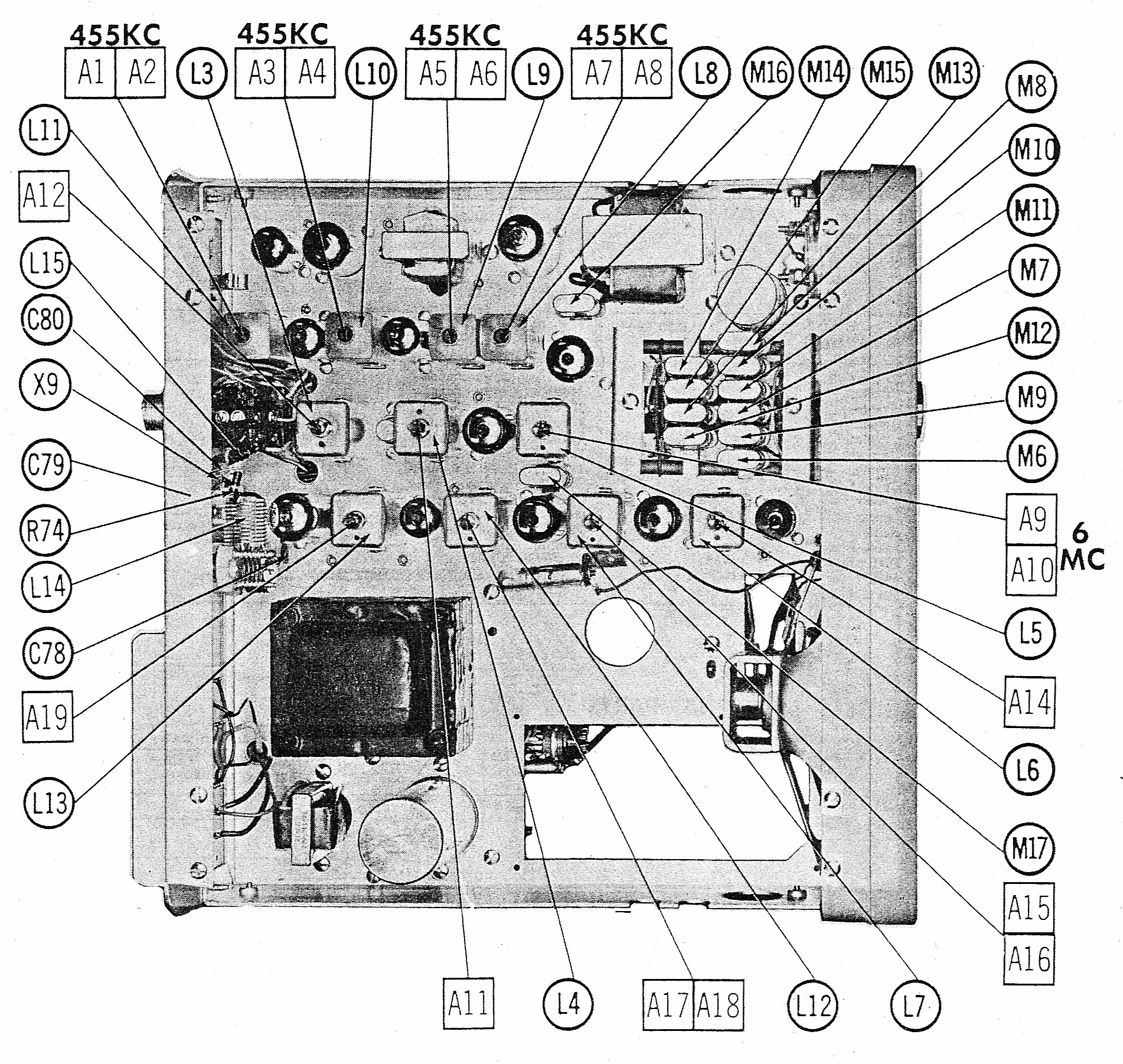

Alignment Points and Component Locations

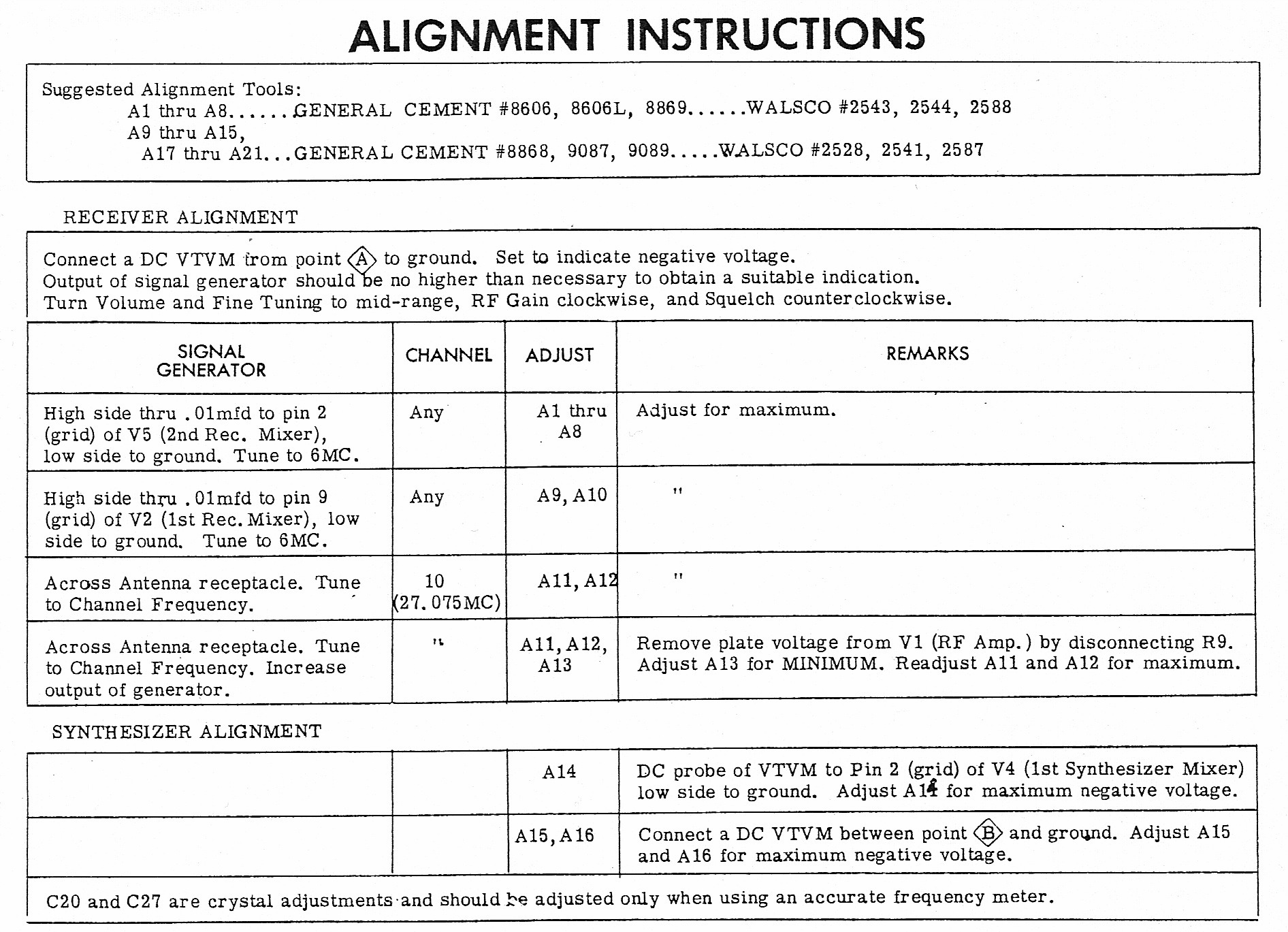

Receiver Alignment Instructions

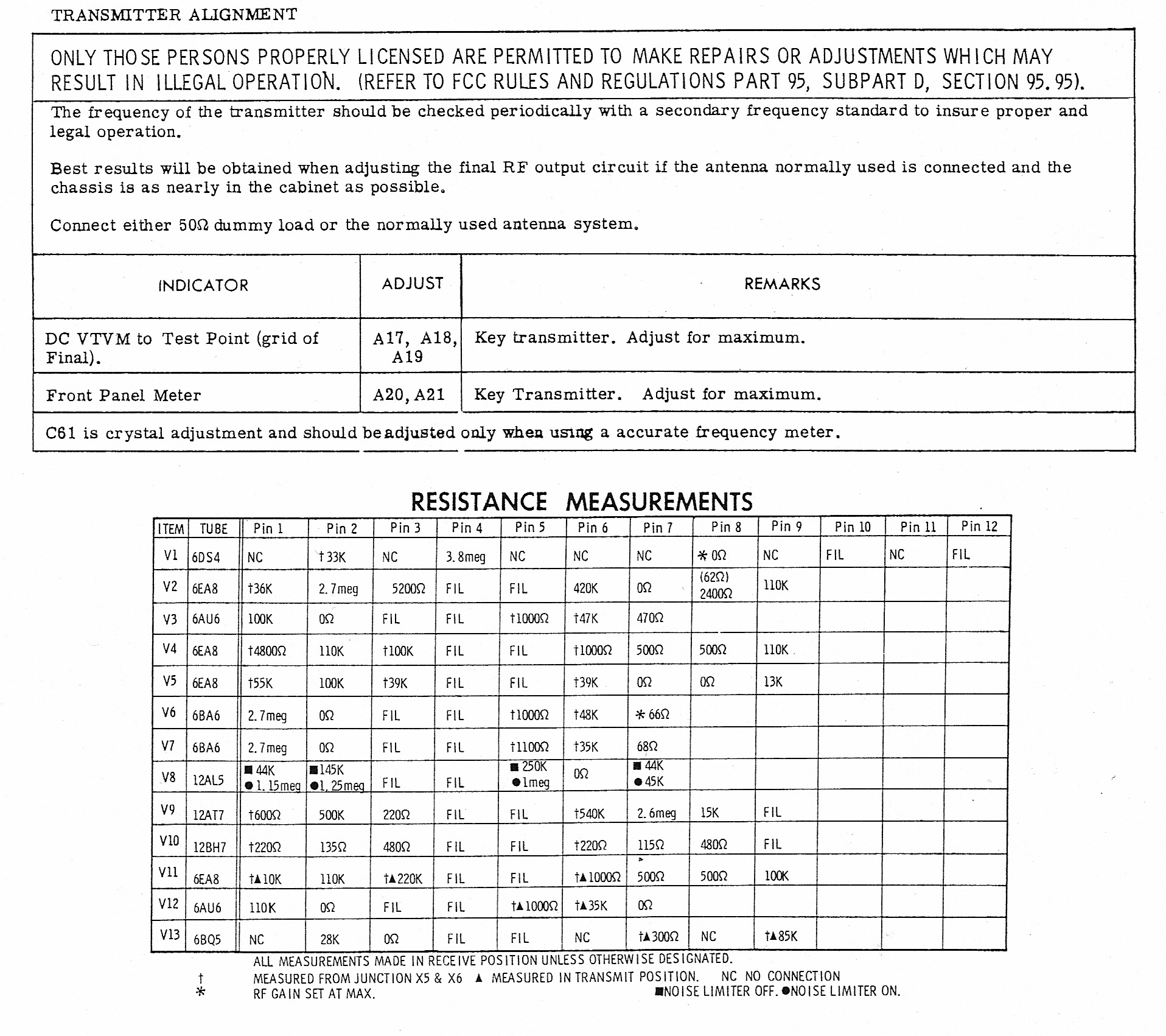

Transmitter Alignment Instructions, and DC Resistance Table.

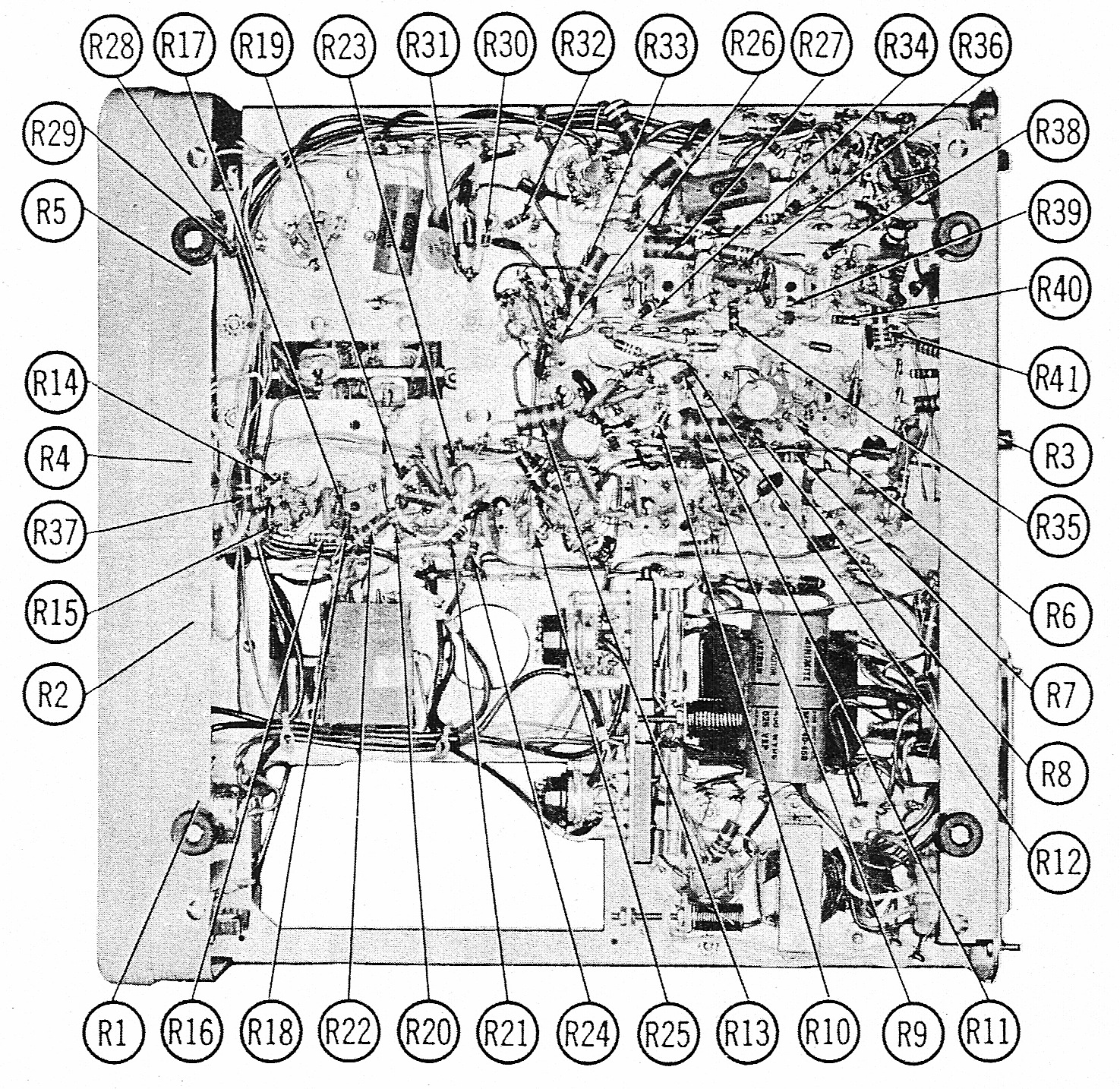

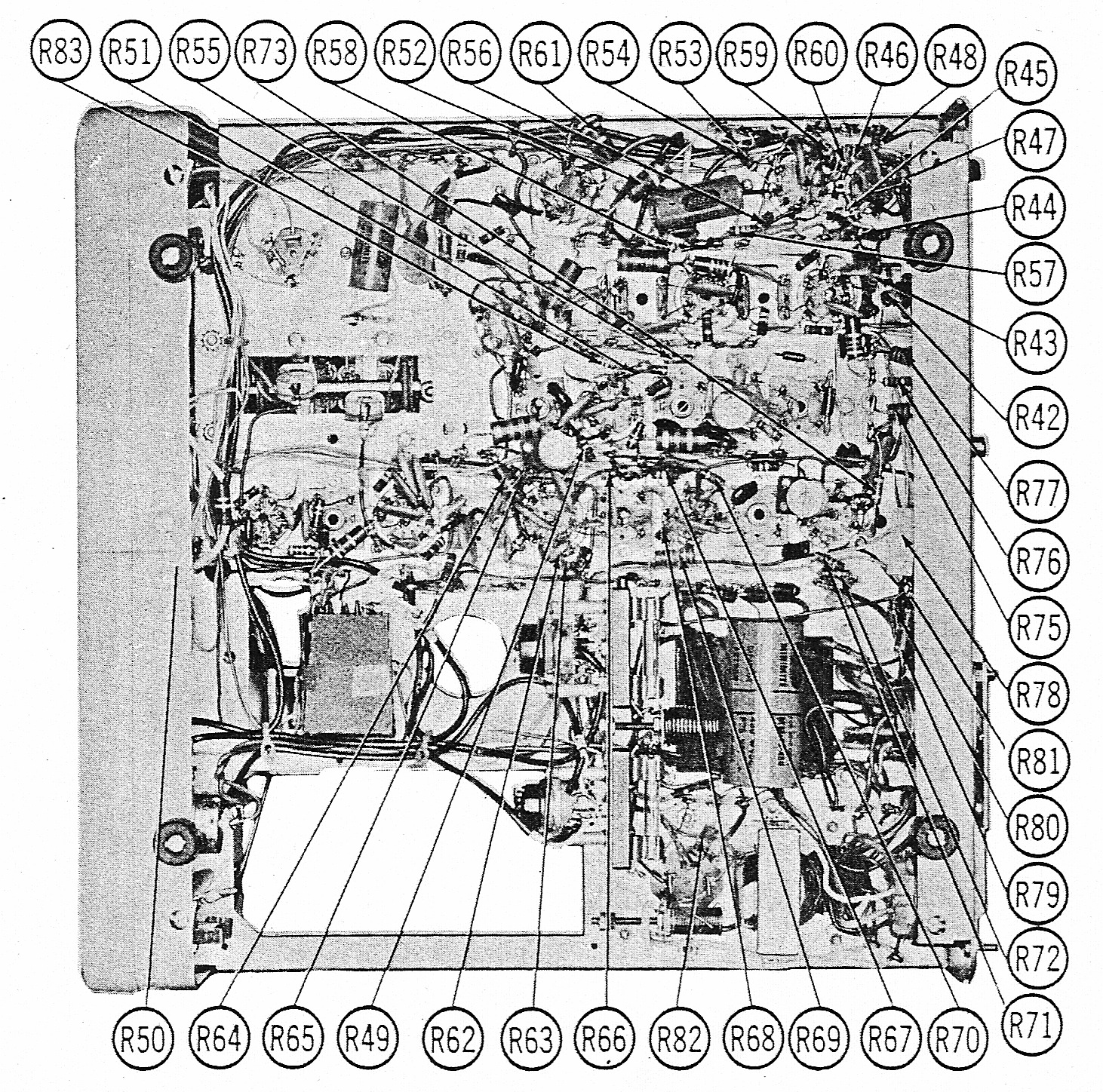

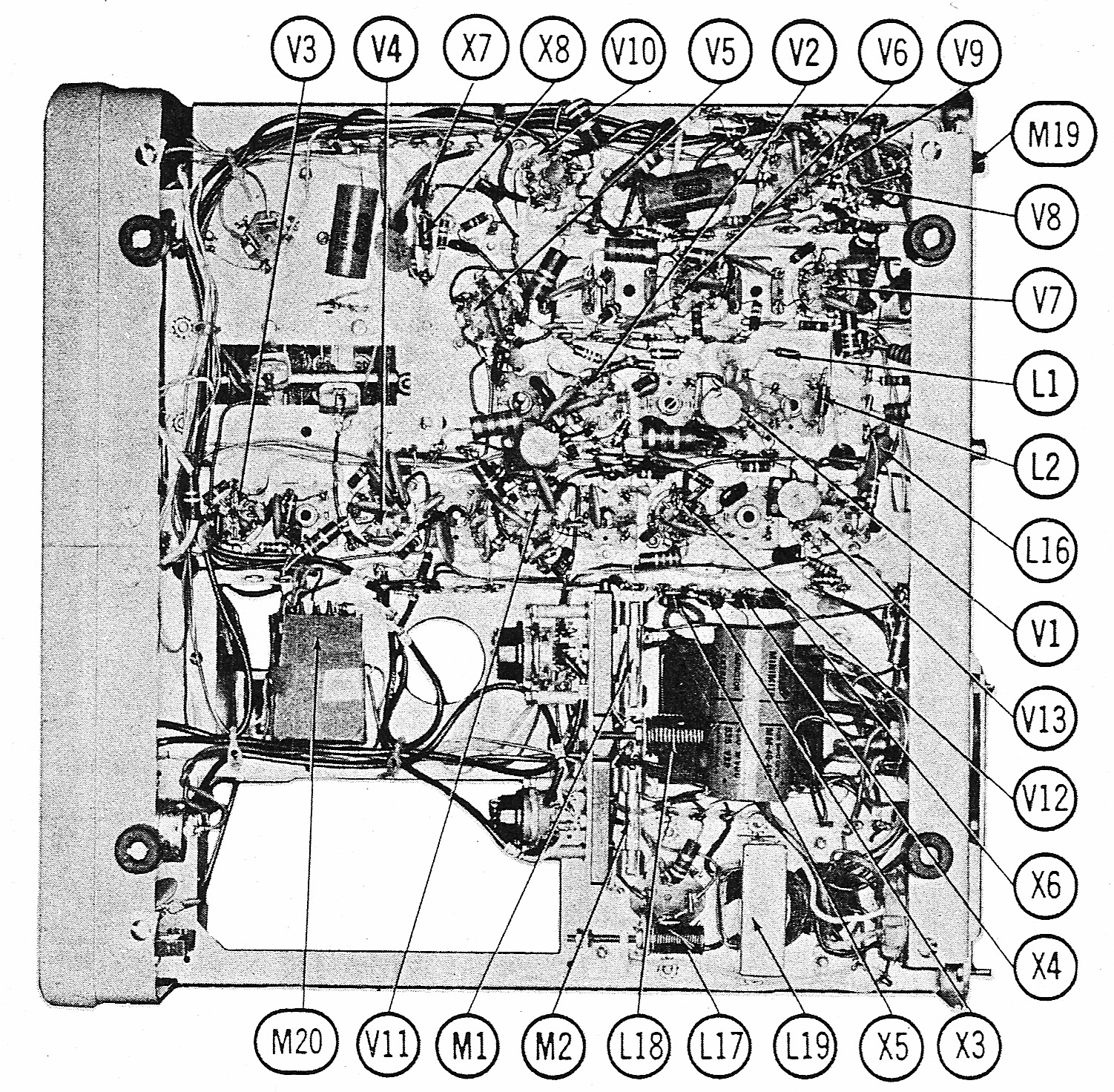

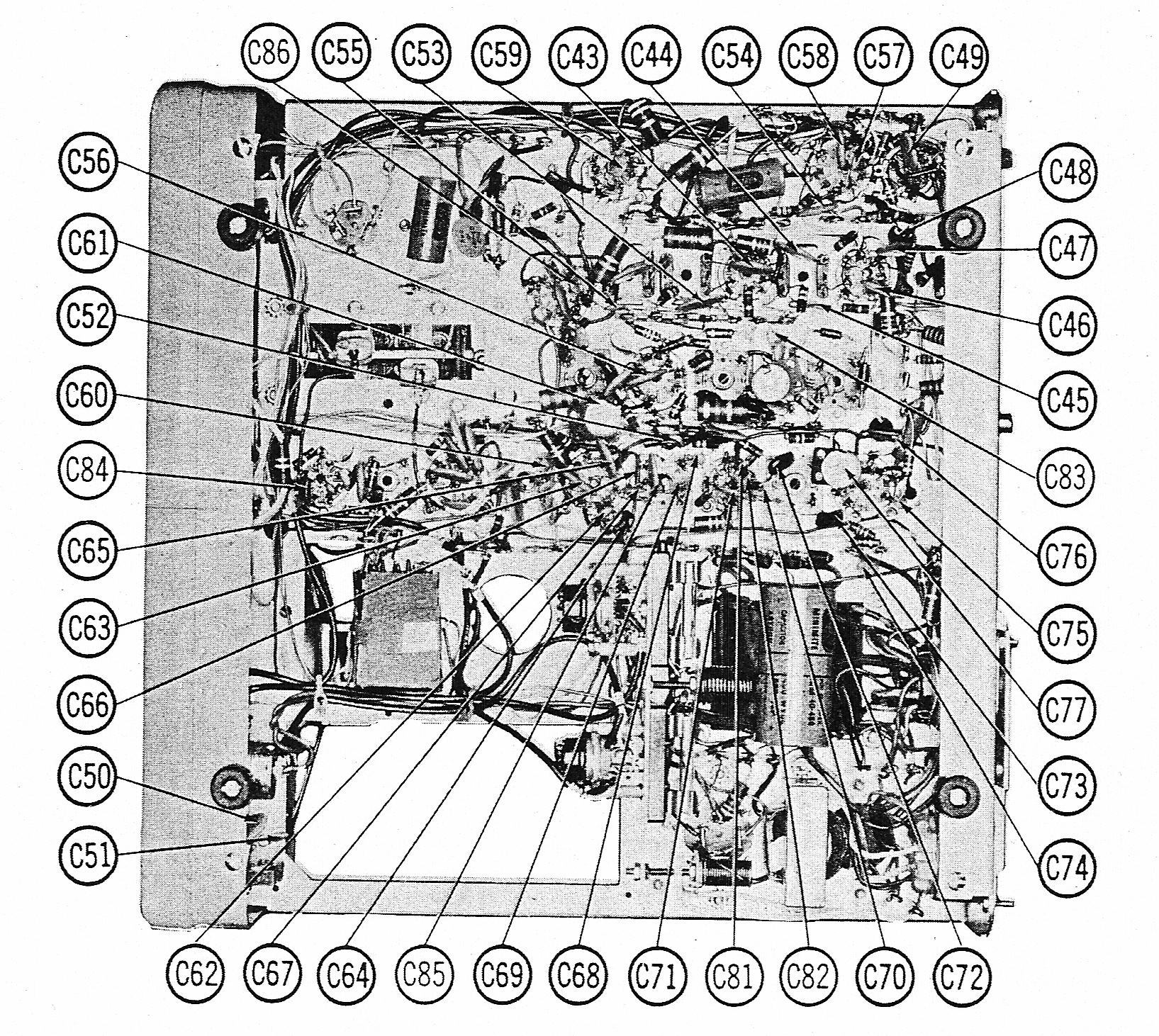

Alignment Points and Component Locations

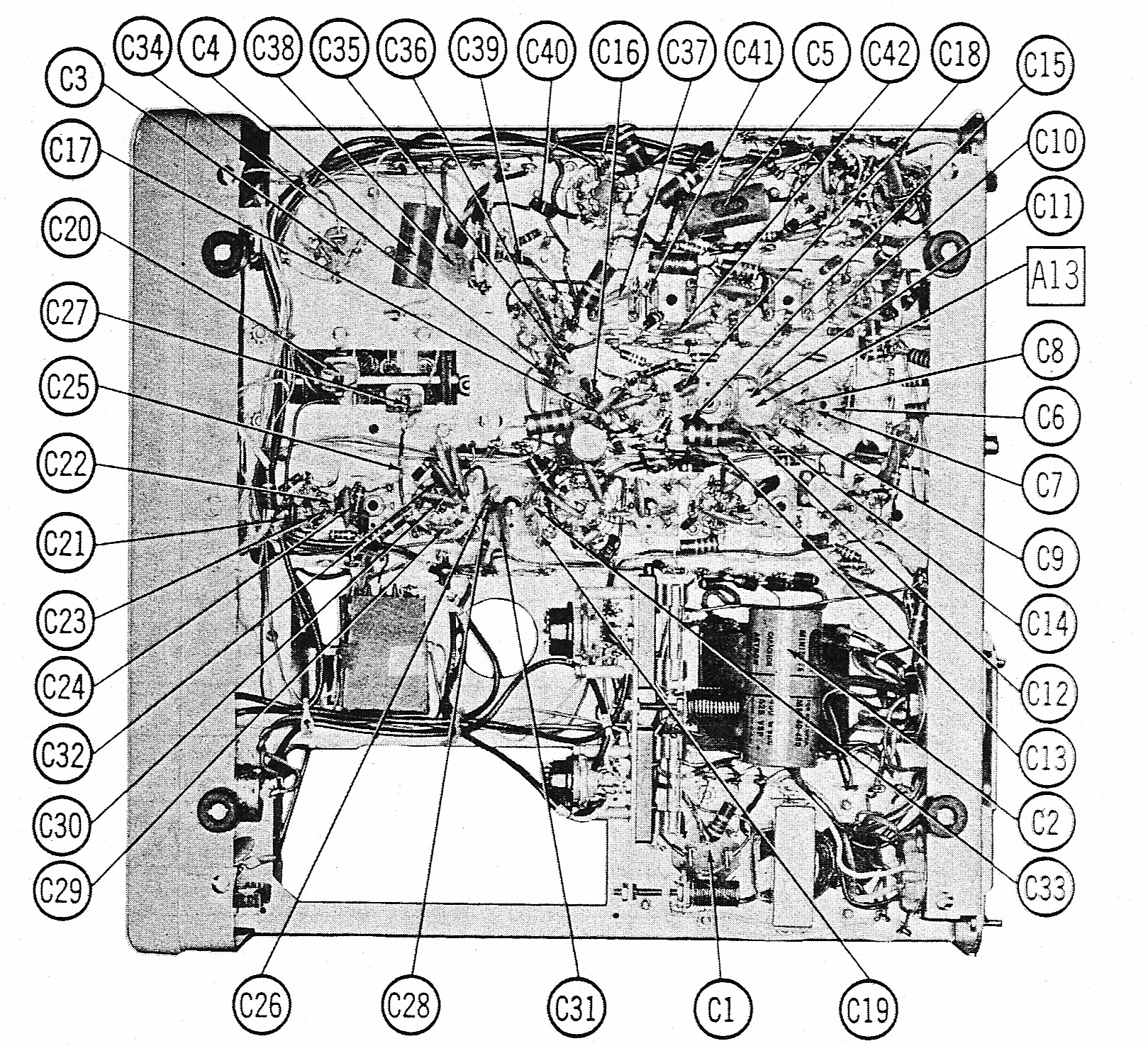

Alignment Points and Component Locations

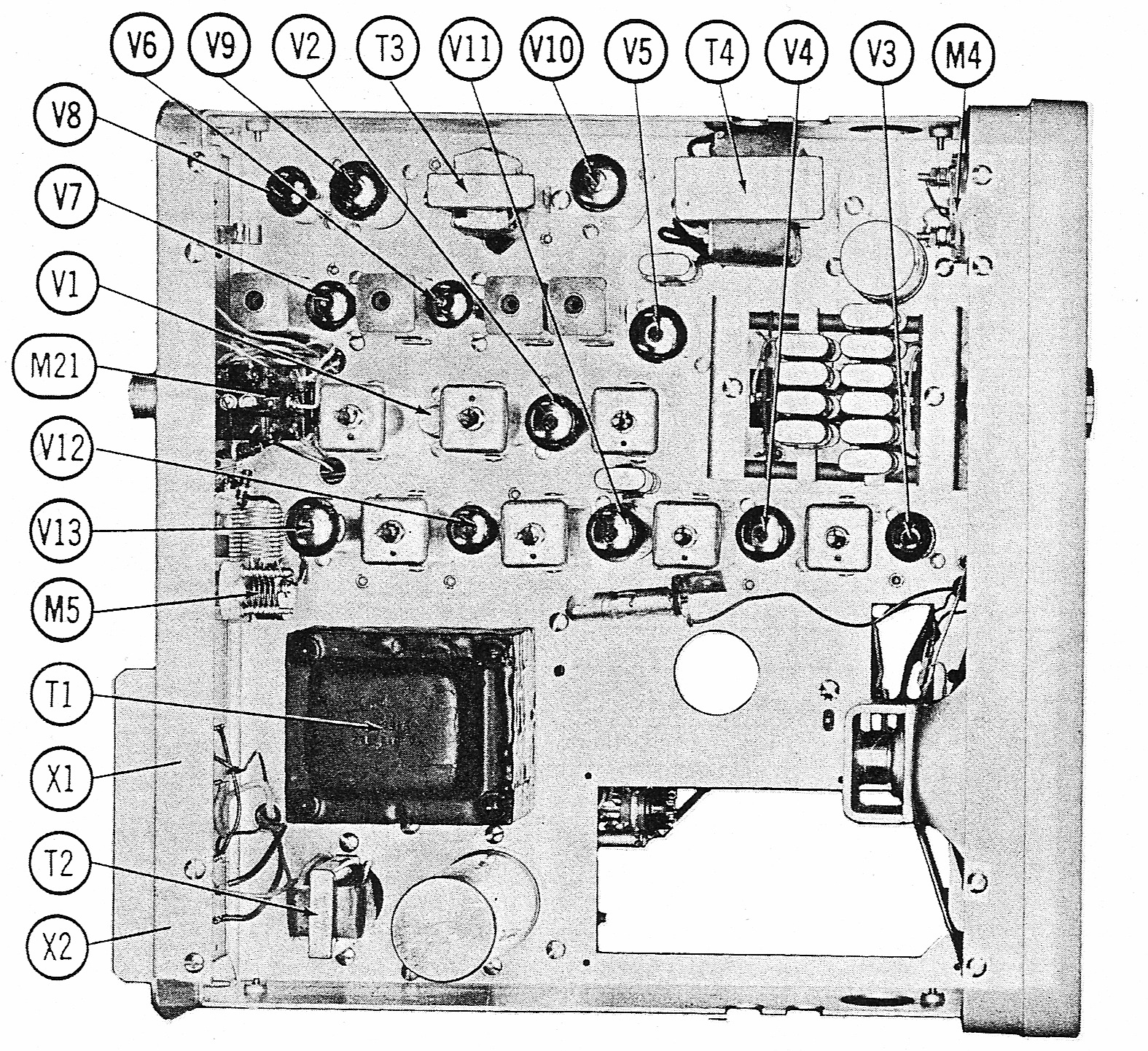

Alignment Points and Component Locations
Alignment Points and Component Locations
Alignment Points and Component Locations
Alignment Points and Component Locations

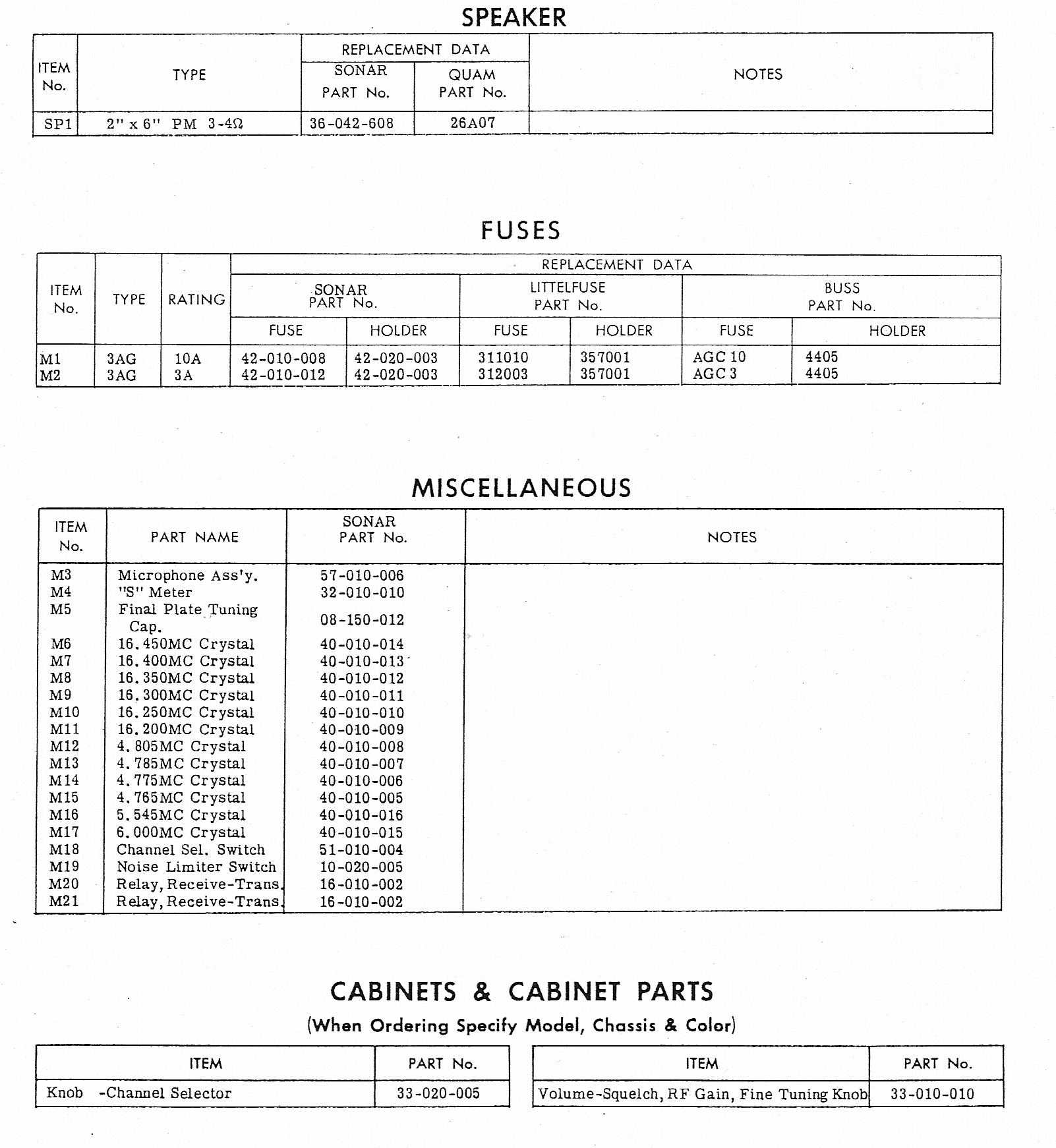

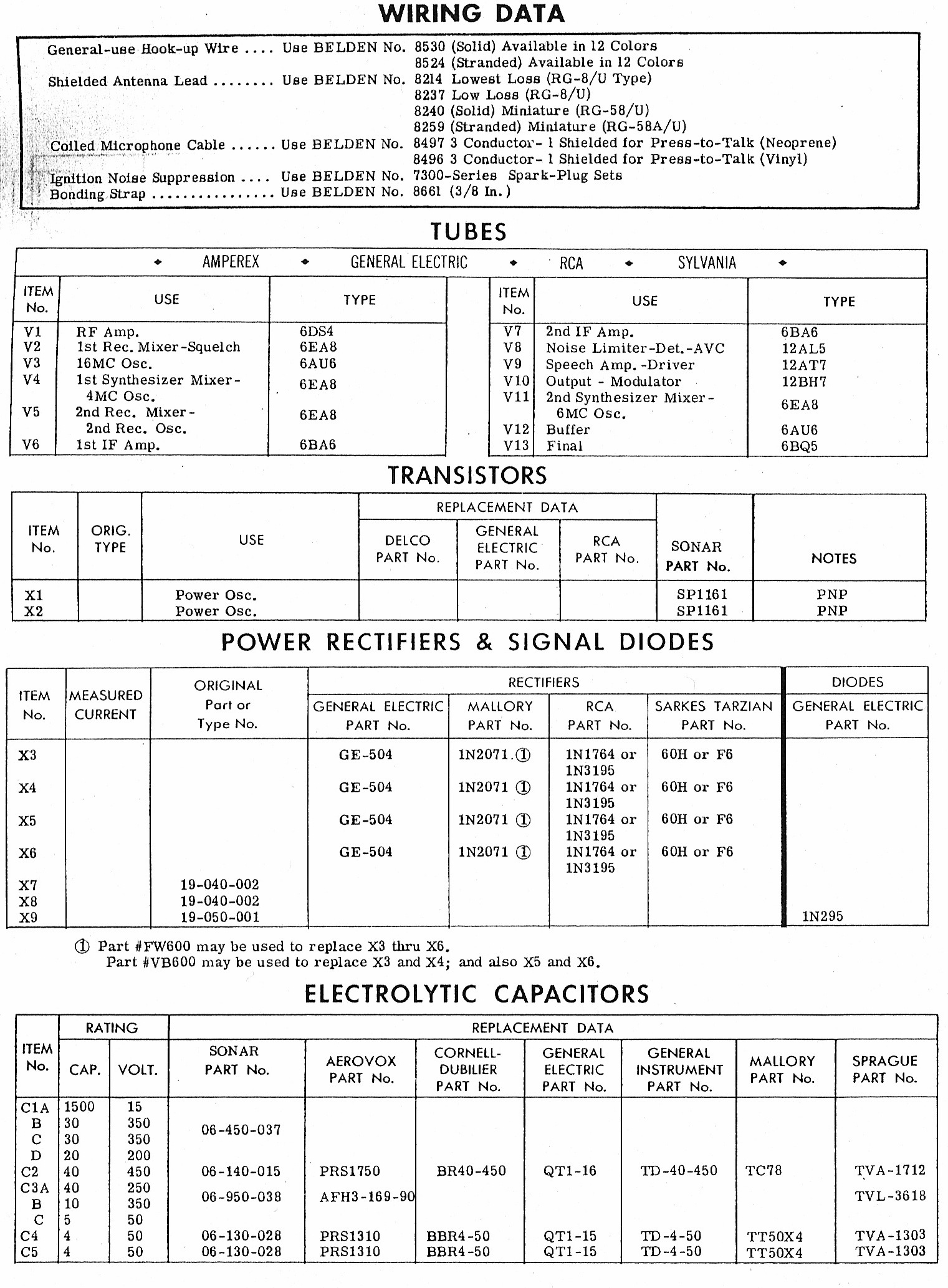

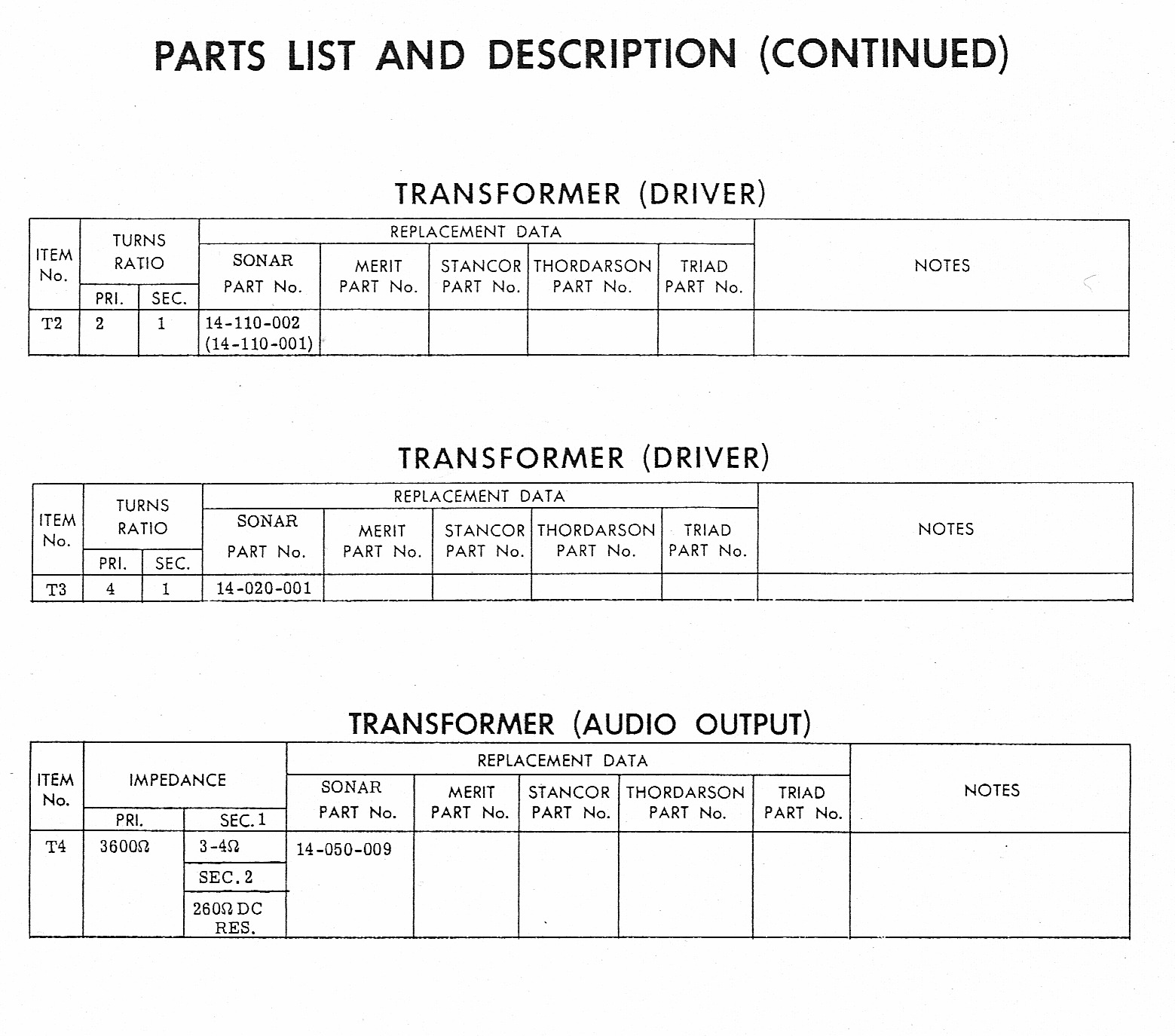

Parts

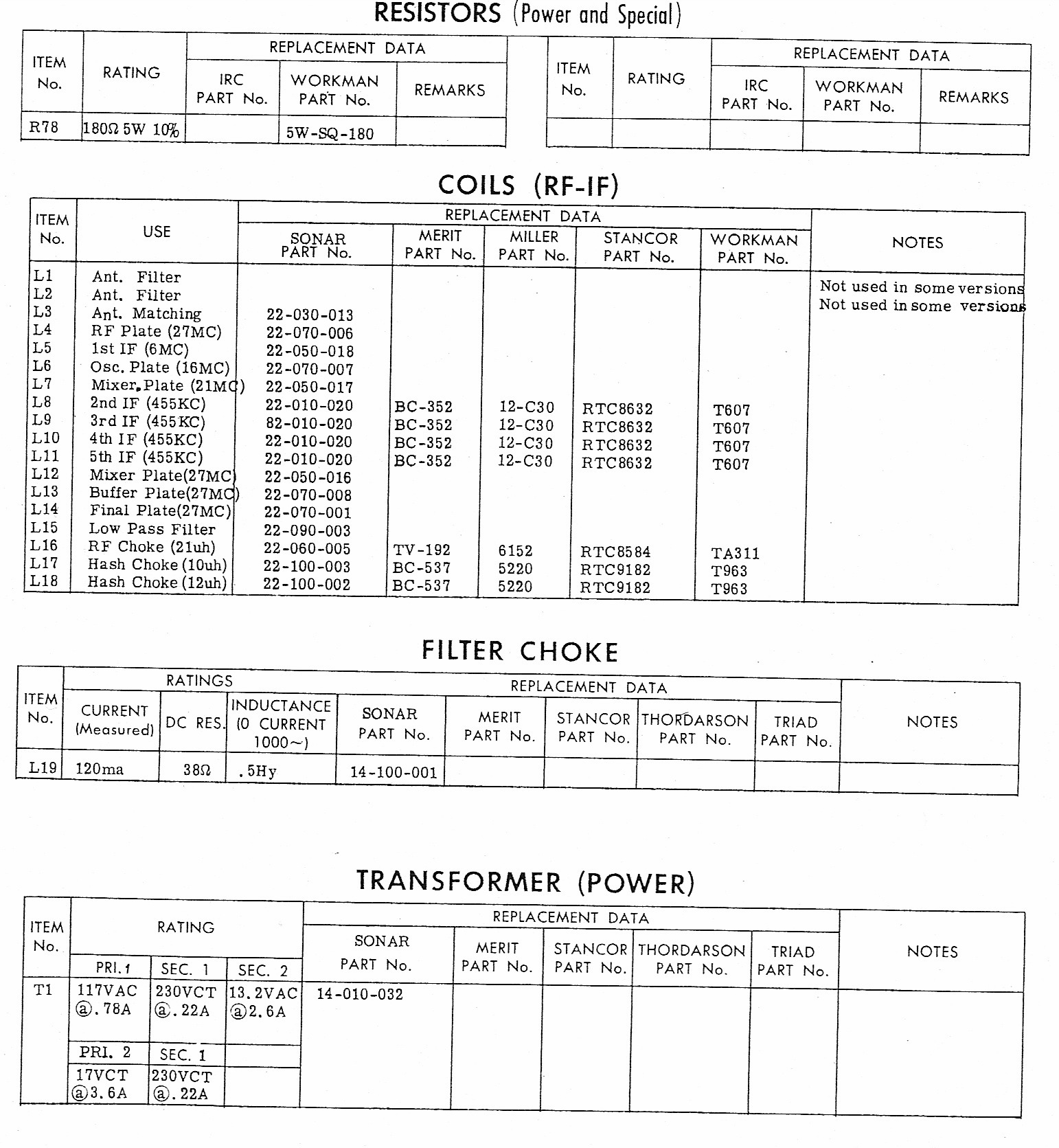

Parts

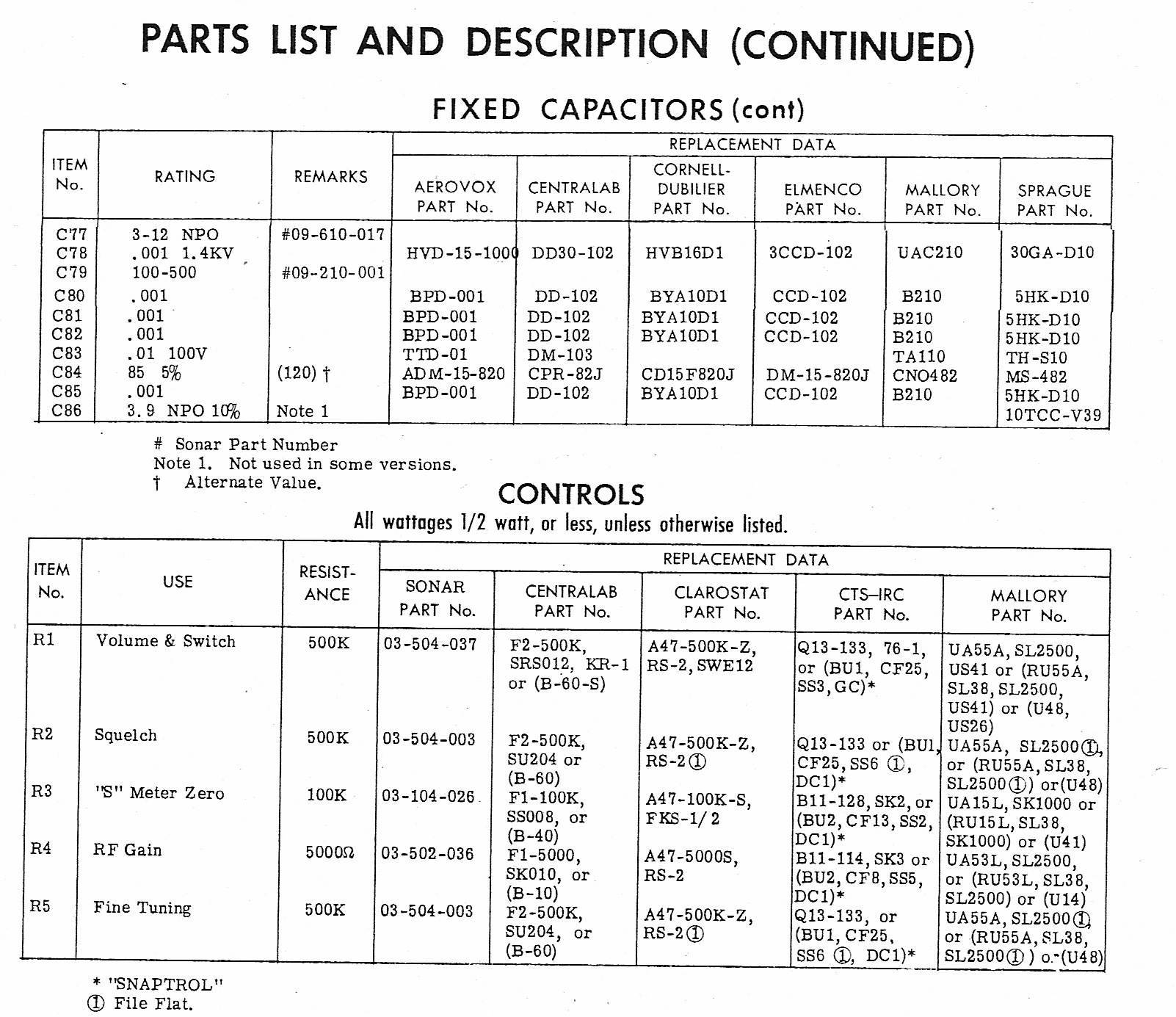

Parts

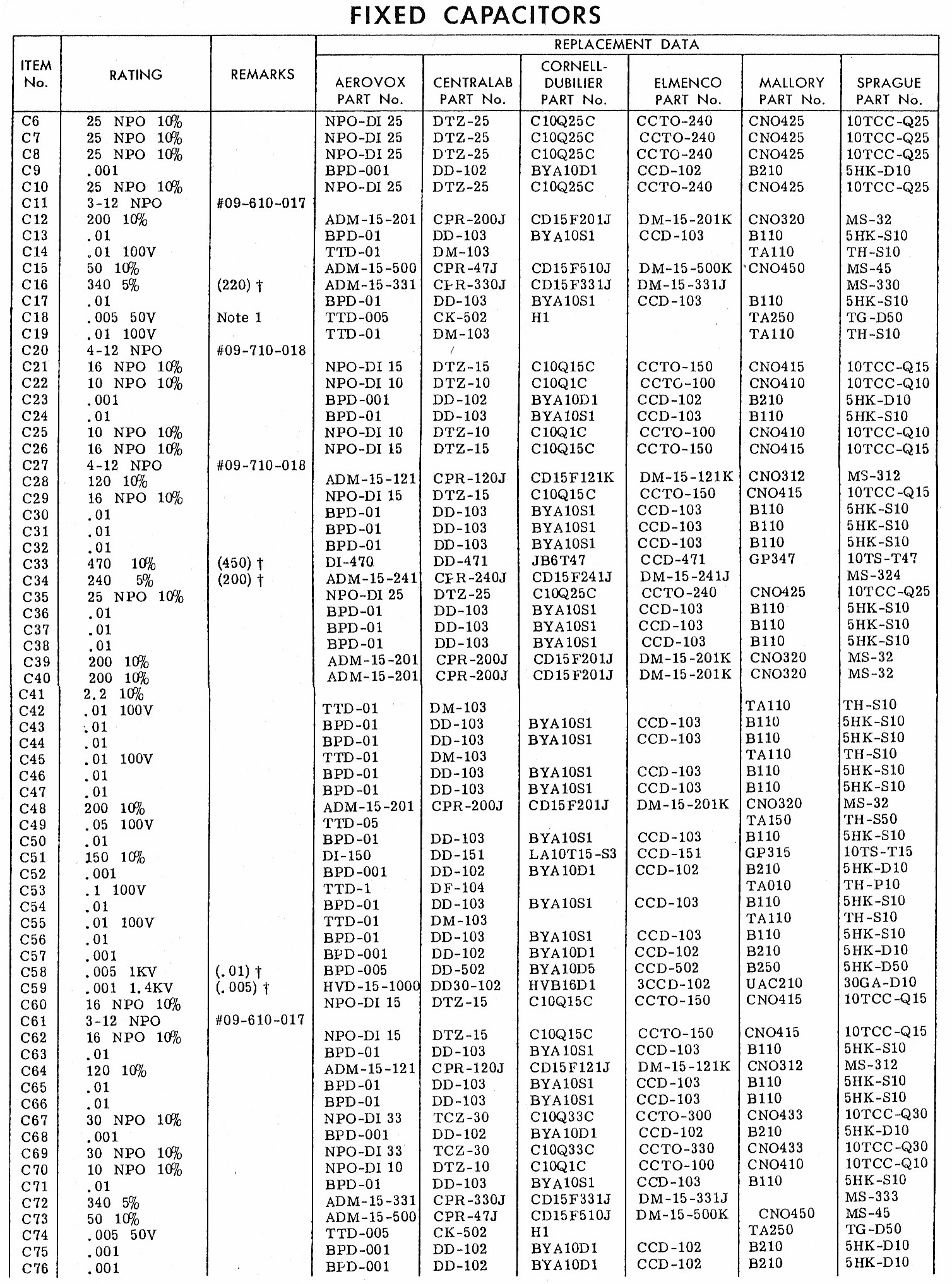

Parts
Parts
Parts
Schematic
